Hydraulic Butt Fusion Welding Machine

Description :

HDPE pipes has been used extensively around the world. It is a cost effective solution for a broad range of piping applications in the municipal, industrial, marine, mining, landfill, duct and agricultural industries.

Butt fusion welding is an effective, trouble free connecting method for PE, HDPE, PP, PVDF pipes. In pressurized piping applications, Hydraulic Butt Fusion Welding Machine Manufacturer & Exporter in India, butt fusion welding can provide excellent performance, just like a whole pipe.

To achieve a good jointing, a steady, precise, robust butt welding machine is critical. MATRIX INDUSTRIES had been developing, manufacturing and distributing butt fusion equipment since 2021. It's our pleasure to help you build reputation in the piping project.

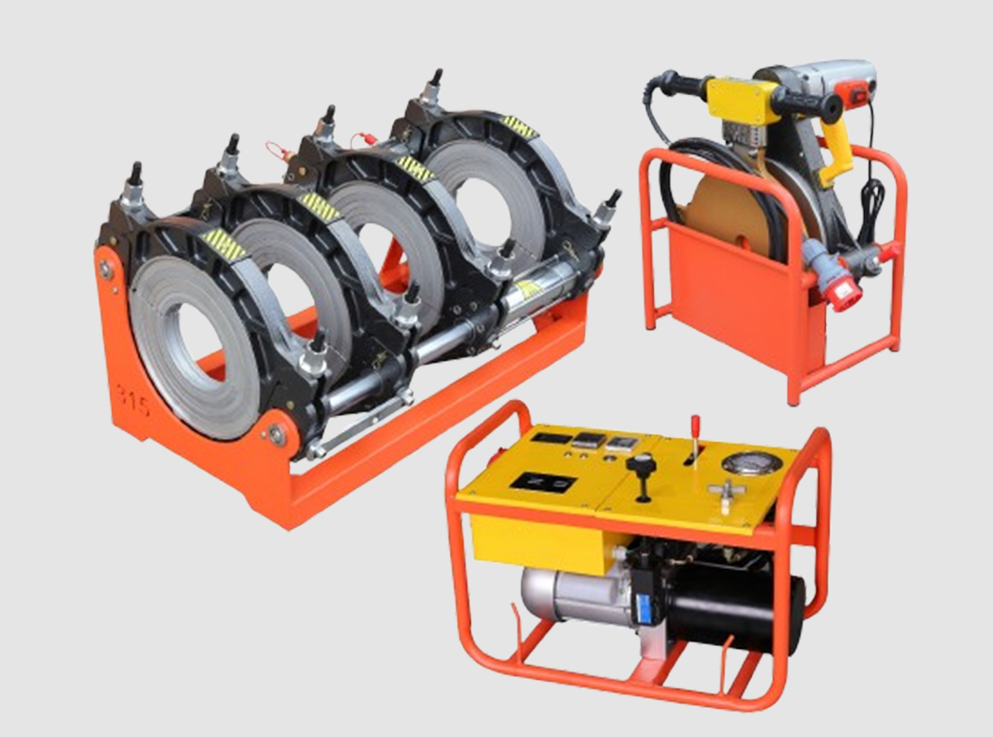

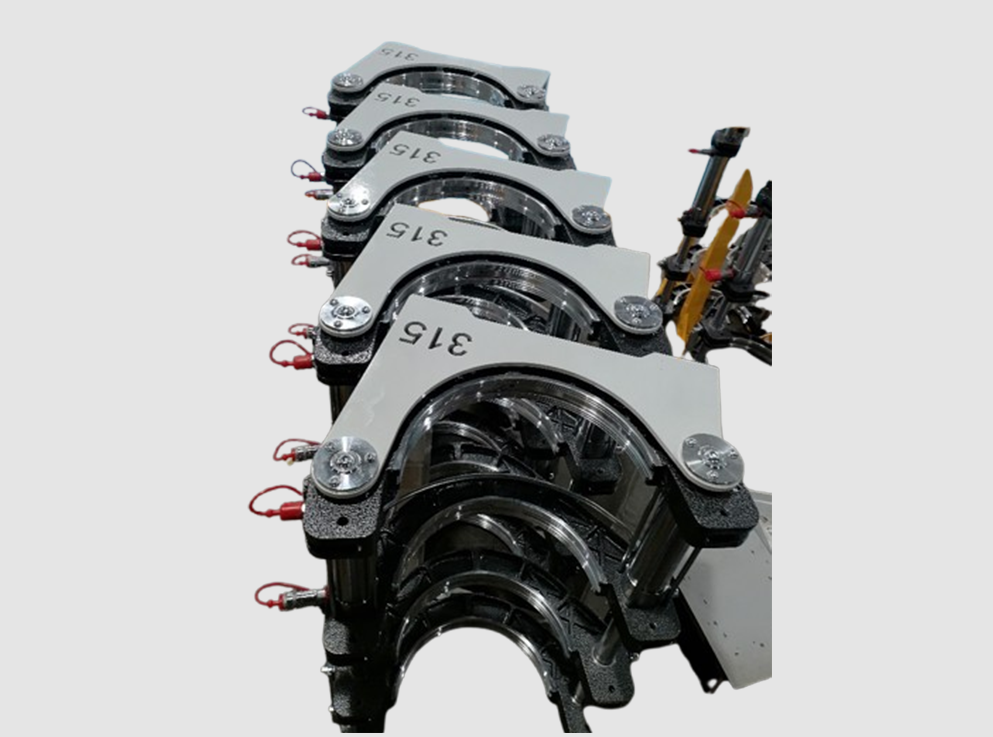

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.

Product Characteristics :

  • Robust structure of carriage part with streamline outlook
  • Durable copper wiring motor, HSS blade, PTFE coating
  • Hydraulic station of integrated enclosure shielding splash and dirt
  • Full gear transmission in planing tool, instead of chain, more heavy duty

Technical Specifications :

Model
HM315
Welding range (mm) 90-315
Standard reducers (mm) 90-110-125-140-160-180-200-225-250-280-315
Power Supply 220V/50Hz, 1 PH
Total Power 5.85 KW
Heating Plate Power 3.1 KW
Planning tool Power 2.0 KW
Hydraulic station Power 0.75 KW
Pressure adjusting range 0-16 Mpa
Max. Temperature of Heating Plate 270°C
Temp. Deviation in Surface ±5°C
Net Weight of Machine 187 KG
