Description :
HDPE pipe has been used extensively around the world. It is a cost effective solution for a broad range of piping applications in the municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe, Push Series Manual Butt Fusion Machine, Industrial Butt Fusion Machine Exporter in India.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. MATRIX INDUSTRIES had been developing, manufacturing and distributing PE butt welding equipment since 2021. It's our pleasure to help you build reputation in the piping project.

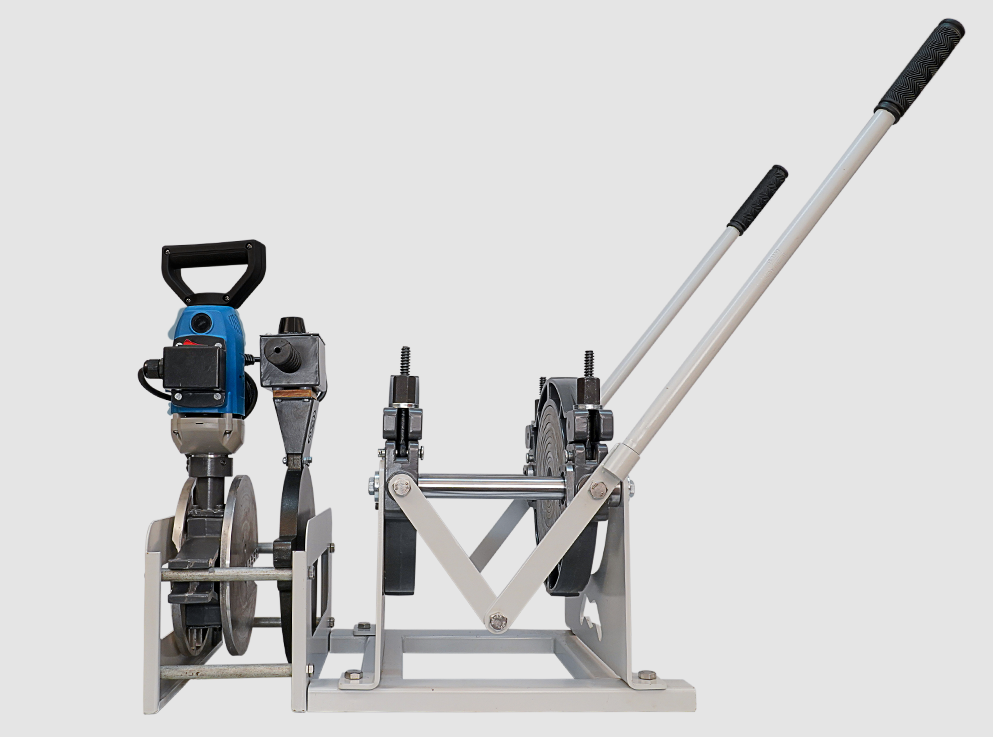

The manual butt fusion welding machine, mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating.
Product Characteristics :
- Robust structure of carriage part with streamline outlook
- Durable copper wiring motor, HSS blade, PTFE coating
- Full gear transmission in planing tool, instead of chain, more heavy duty
Technical Specifications :
| Welding range (mm) | 50-160 | 63-200 |
| Standard reducers (mm) | 50-63-75-90-110-125-140-160 | 63-75-90-110-125-140-160-180-200 |
| Power Supply | 220V/50Hz, 1 PH | 220V/50Hz, 1 PH |
| Total Power | 2.1 KW | 2.5 KW |
| Heating Plate Power | 1.1 KW | 1.5 KW |
| Planning tool Power | 1.0 KW | 1.0 KW |
| Max. Temperature of Heating Plate | 270°C | 270°C |
| Temp. Deviation in Surface | ±5°C | ±5°C |
| Net Weight of Machine | - | - |
