Manual Butt Fusion

Description :

HDPE pipe has been used extensively around the world. It is a cost effective solution for a broad range of piping applications in the municipal, industrial, marine, mining, landfill, duct and agricultural industries.

Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe.

To achieve a good jointing, a steady, precise, robust butt welding machine is critical. MATRIX INDUSTRIES had been developing, manufacturing and distributing Manual Butt Fusion Manufacturer, Manual Butt Fusion Welding Machine Exporter in India, PE butt welding equipment since 2021. It's our pleasure to help you build reputation in the piping project.

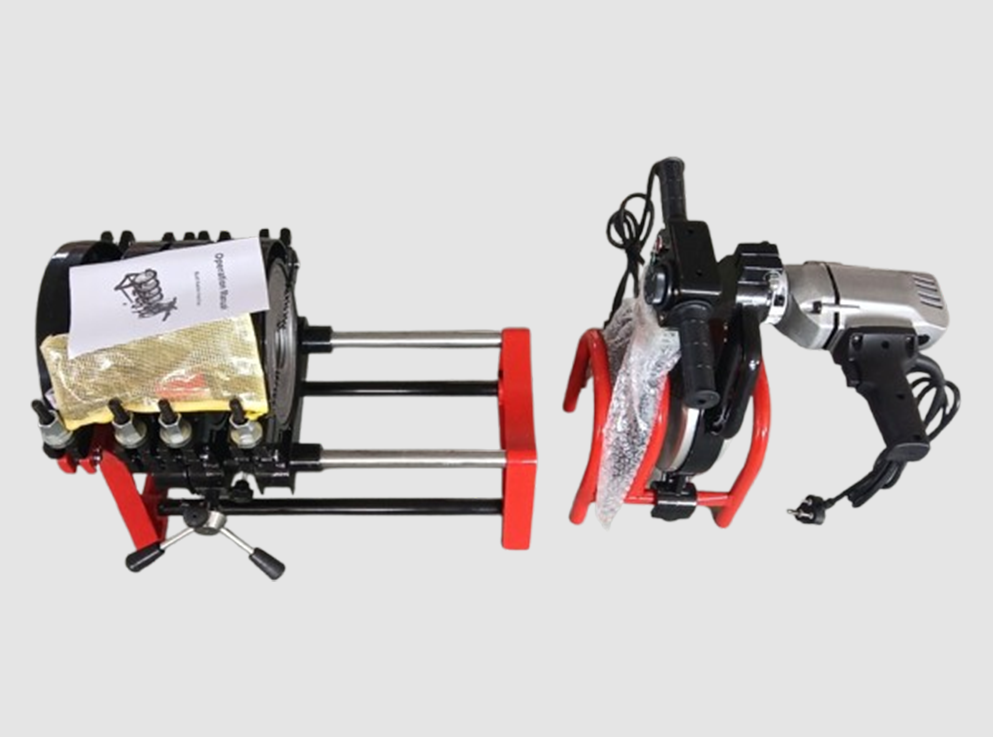

The manual butt fusion welding machine, mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating.

Product Characteristics :

  • Full metal welding structure of carriage part, light-weight and strong enough
  • Hand-wheel handle with gear transmission for easy operation
  • Durable copper wiring motor, PTFE coating

Technical Specifications :

Model
RM200D
Welding range (mm) 63-200
Standard reducers (mm) 63-75-90-110-125-140-160-180-200
Power Supply 220V/50Hz, 1 PH
Total Power 2.5 KW
Heating Plate Power 1.5 KW
Planning tool Power 1.0 KW
Max. Temperature of Heating Plate 270°C
Temp. Deviation in Surface ±5°C
Net Weight of Machine -
