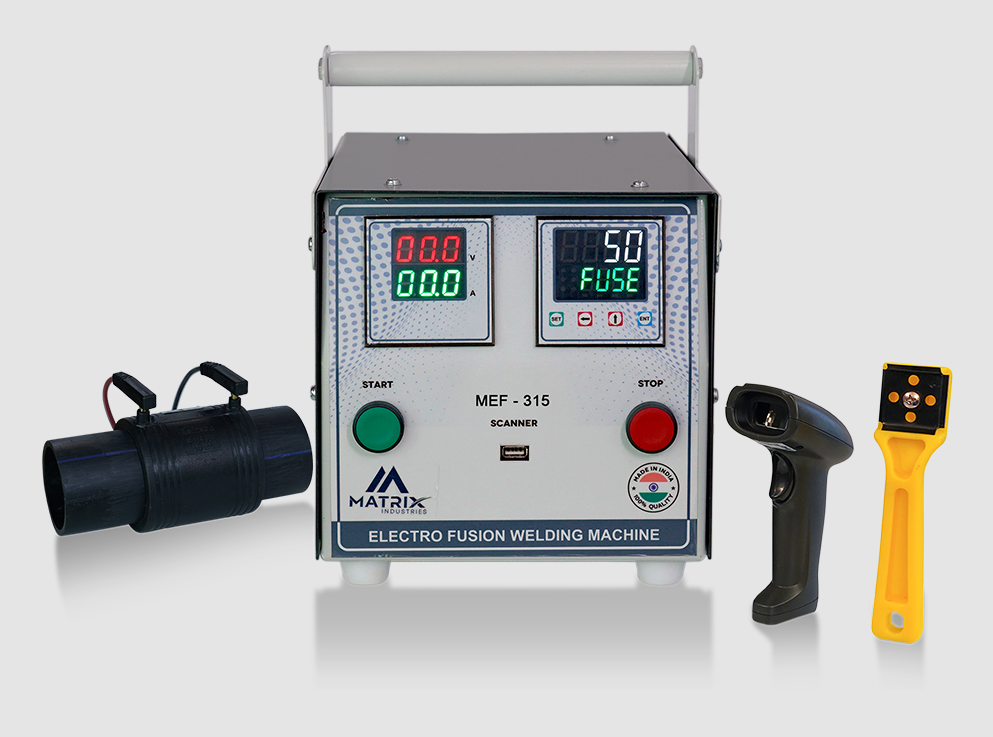

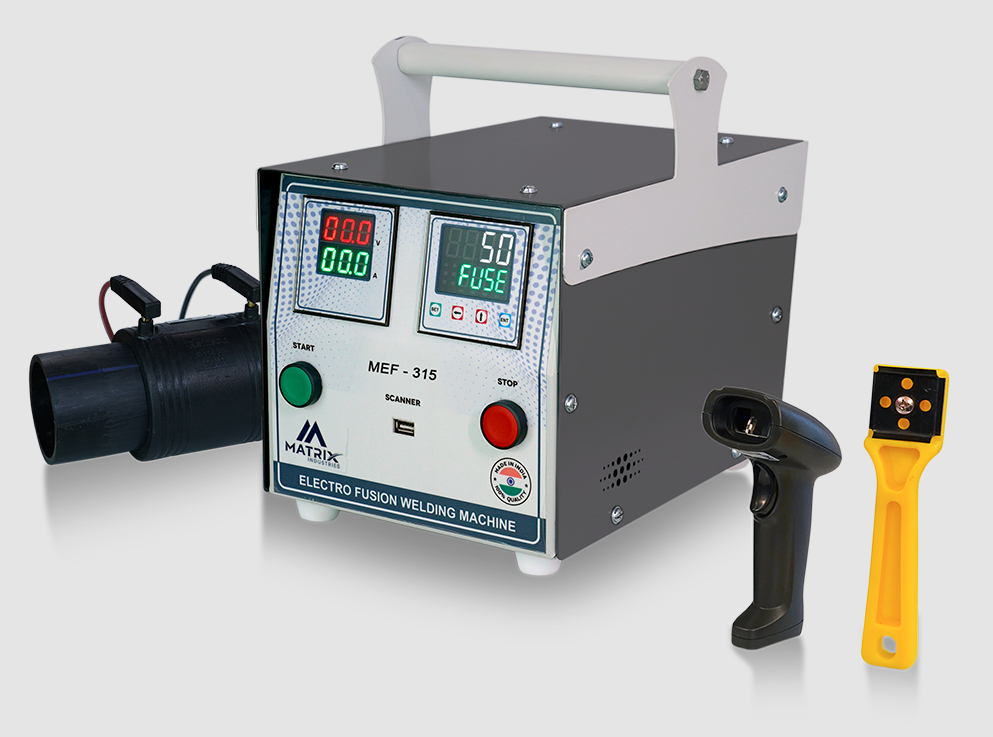

MEF Electrofusion Machine

Description :

Electrofusion welding is widely used in PE and PP pipe jointing, with various kind of electrofusion fittings. With the tool of electrofusion welder, the connection job can be done efficiently. Our MEF & EFM series electrofusion welder can provide flexible choice of welding, ranging from 20mm to 315mm, MEF Electrofusion Machine Manufacturer, Hdpe Electrofusion Welding Machine 315mm.

MATRIX INDUSTRIES had been developing, manufacturing and distributing thermoplastic welding equipment since 2021. It's our pleasure to help you build reputation in the piping project.

Product Characteristics :

  • Input Voltage Indicator
  • Scanner to Scan Fusion Barcode to Set Fusion Time
  • luminated ON/OFF Switch
  • START/ STOP Push Button
  • Selector Switch Is Very Advance Future of Our Electrofusion for Accurate Joints. (Set Selector Switch Near to Supply Voltage for Constant Fusion Voltage)
  • Count Down Timer Along with Av Meter for Fusion Voltage & Ampere.
  • Audio Visual Signal for Fusion & Cooling Process.
  • Stop Button to Stop Fusion & Cooling at Any Stage.
  • Face Lift Design with Big Display for Easy Visual.
  • Lifting Handle & Cable Clamp on Top.

Technical Specifications :

Model
MEF315
Welding mode Automatic and Manual
Welding range (mm) 20-315
Suitable material PE, PP
Power Supply 200V-250V/50Hz, 1 PH (Input Voltage Manual Selection)
Total Power 2.2 KW
Ambient temperature -15~45℃
Voltage control mode 8~48V adjustable
Current control mode 1~60A
Time adjusting range 1-9999 seconds
Data interface scanner
Input Supply Cable 3 Meter
Fusion Cable 3 Meter
Connecting pin 4 & 4.7 mm One pair
Generator Required 5 KVA
Net Weight of Machine 19 KG
